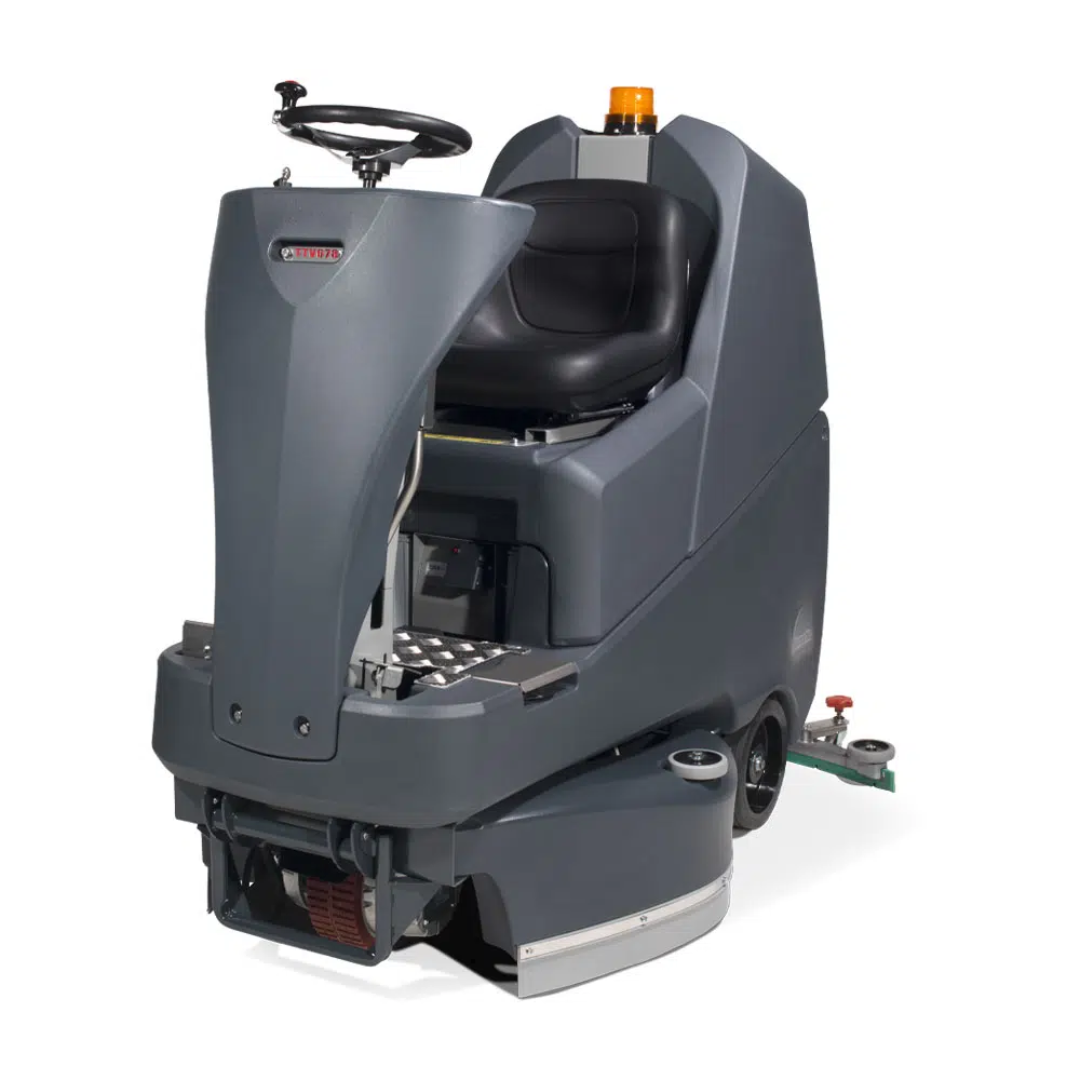

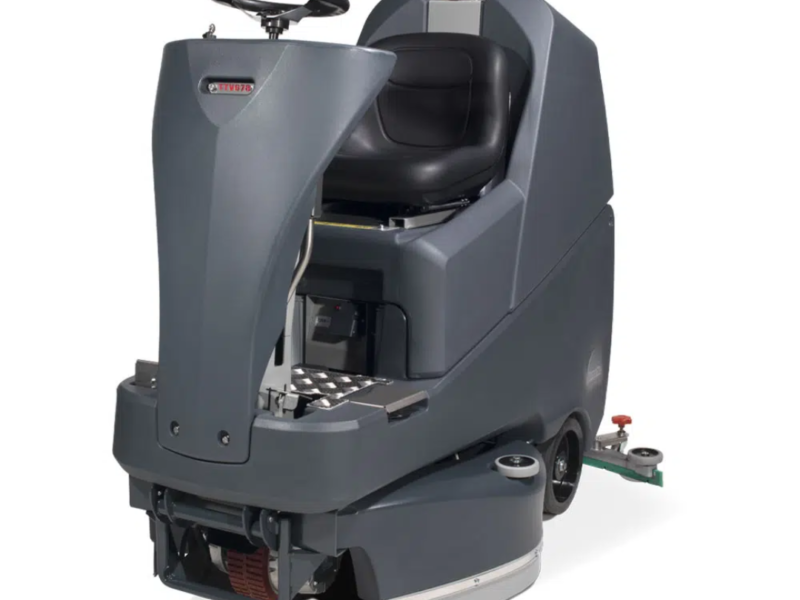

Numatic TTV678G

Expansive factory floors and transport concourses require versatile scrubbing that adapts to varying aisle widths. The TTV678G features an adjustable 3-in-1 brush deck that shifts between 650mm, 750mm and 850mm on the fly, allowing the operator to navigate tight racking before opening up across open bays.

The TTV678G suits very large industrial floors with mixed open and congested zones. Fill the 120L tank, select the width for the zone, and drive steady lanes while recovery keeps the floor open. Three 400W brush motors with a 600W vacuum motor hold suction across the widest setting. Four 12V units giving 24V 200Ah run up to 4.5 hours with an 8 to 12 hour charge, so overnight charging covers the next day. At 225kg with kit, route planning must respect floor loadings, ramps and lift limits.

The adjustable 650, 750 and 850mm working widths are the headline, changed on the move to match the aisle. The 120L water capacity with three brush motors plus vacuum defines stamina per fill. Runtime to 4.5 hours with that battery bank sets the daily envelope for supervisors costing large sheds.

Charge overnight on the correct charger, check water levels where applicable, and inspect all three brush heads for even wear so width changes stay seamless. Train drivers on width selection and pedestrian awareness before lone operation. Stock brushes and blades as matched sets, because an adjustable deck only performs when every head wears evenly.

Key points

• Three in one brush system at 650, 750 or 850mm, changed on the move
• 120L water capacity with up to 4.5hr runtime
• Three 400W brush motors plus a 600W vacuum motor
